Product overview

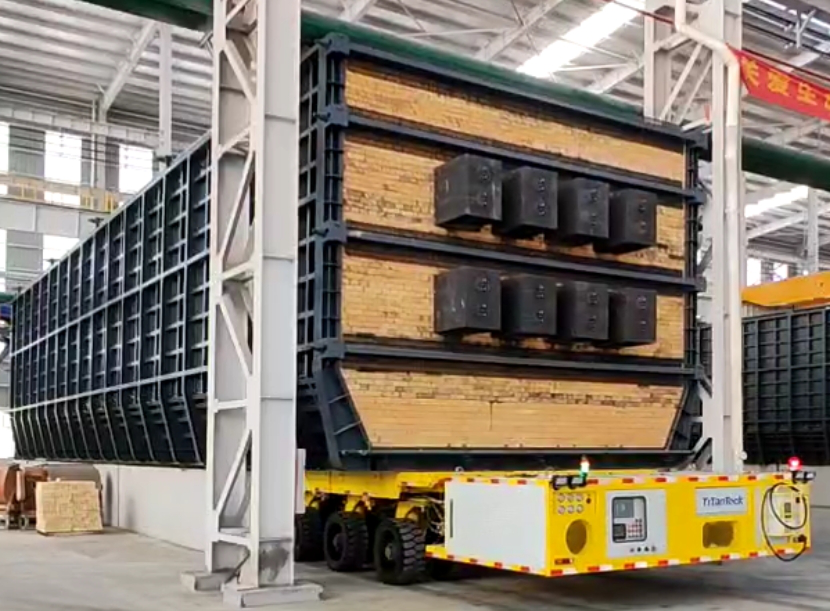

This electric flatbed truck has a width of 3.8m and is a special vehicle (APMT) equipped with hydraulic lifting, hydraulic driven steering, and electric motor driven walking. It is used for the turnover and transportation of heavy goods within the site. The vehicle can drive under a bracket that supports the load, use its lifting system to lift the load and transport it to any designated location, and then lower the load. This process does not require a crane or any other lifting equipment, and can be operated by a single person.
The number of transportation vehicles in this module is 16 axes, with a width of 3.8m. Among them, there are 2 6-axis module unit vehicles, 1 4-axis module unit vehicle, and 1 power module unit.
1. Environmental temperature: maximum temperature+55 ℃, minimum temperature -25 ℃. (The highest and lowest temperatures refer to the local temperature reported by the China Meteorological Center)
2. Environmental humidity: The maximum relative humidity is 100%, which is suitable for operation under light rain conditions.
3. Working wind level: ≤ 6 levels.
4. Road surface requirements: general asphalt or concrete road surface (rolling resistance is calculated based on 0.018-0.020).
|
Number of axes |
16 |
|
Number of power module units |
1 |
|
Empty speed (km/h) |
3 |
|
Full load flat ground speed (km/h) |
1.5 |
|
Full load climbing speed (km/h) |
0.5 |
|
Full load climbing slope (%) |
4 |
|
Maximum total mass (kg) |
900000 |
|
Self weight (kg) |
80000 |
|
Rated loading mass (kg) |
820000 |
|
Load per axis (kg) |
60 |
|
Per suspension load |
30 |
|
Number of drive axes |
3 |
|
Number of Drive Suspension |
6 |
|
Traction force (kN) |
360 |
|
Braking force (kN) |
600 |
|
Minimum height for unloaded driving (mm) |
1400 |
|
Hydraulic compensation (mm) |
400 (± 200) |
|
Wheel angle (°) |
± 110 ° |
|
Number of tires per axis |
4 |
|
Total number of tires |
64 |
|
Tire size |
355/50-20 solid tires |
|
Wheelbase (mm) |
1500 |
|
Load height (mm) |
1400 ± 200 |
|
Wheel spacing (mm) |
2750 |
|
Suspension type |
hydraulic 3-point or 4-point |
|
Steering mode |
electronic control hydraulic |
|
Frame type |
box structure |
|
Brake system |
pneumatic drum brake |
|
Operation mode |
wireless remote control/wire control/panel operation |
|
Battery |
Ningde Era Battery, with a total storage capacity of 141 kWh |
